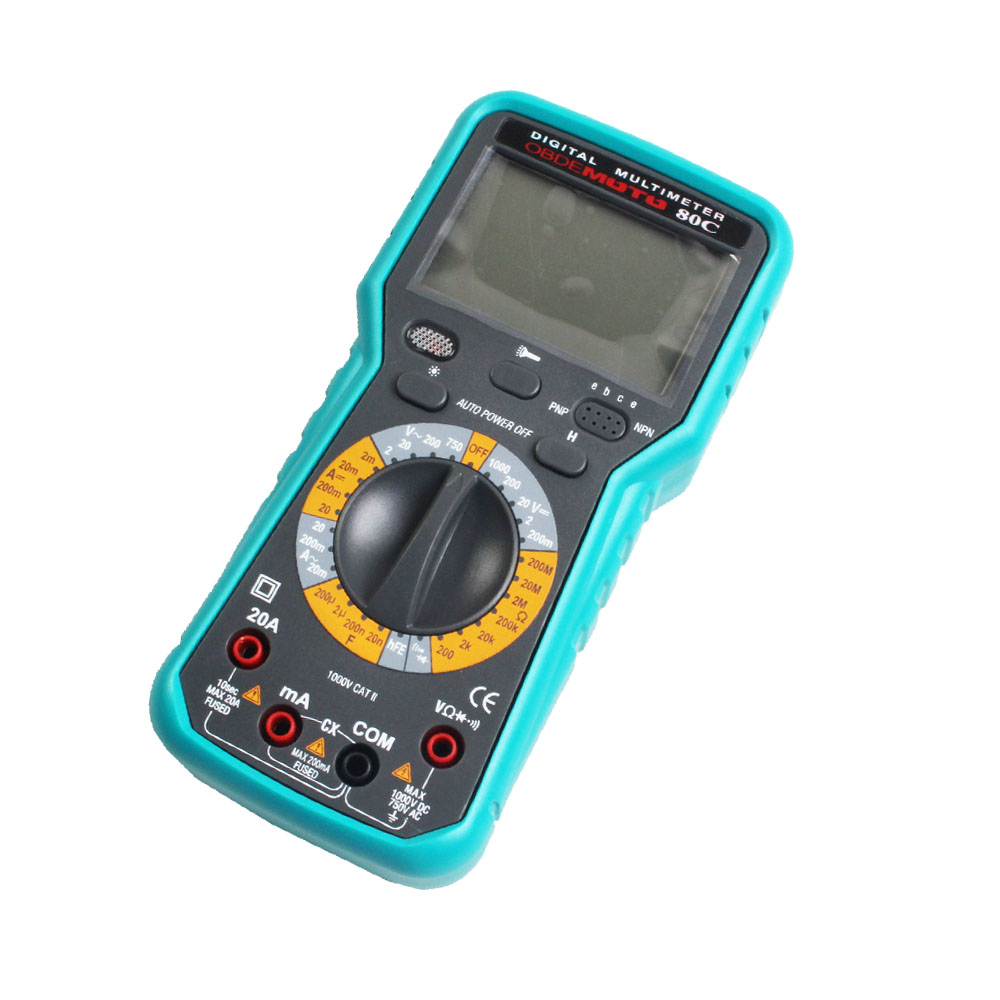

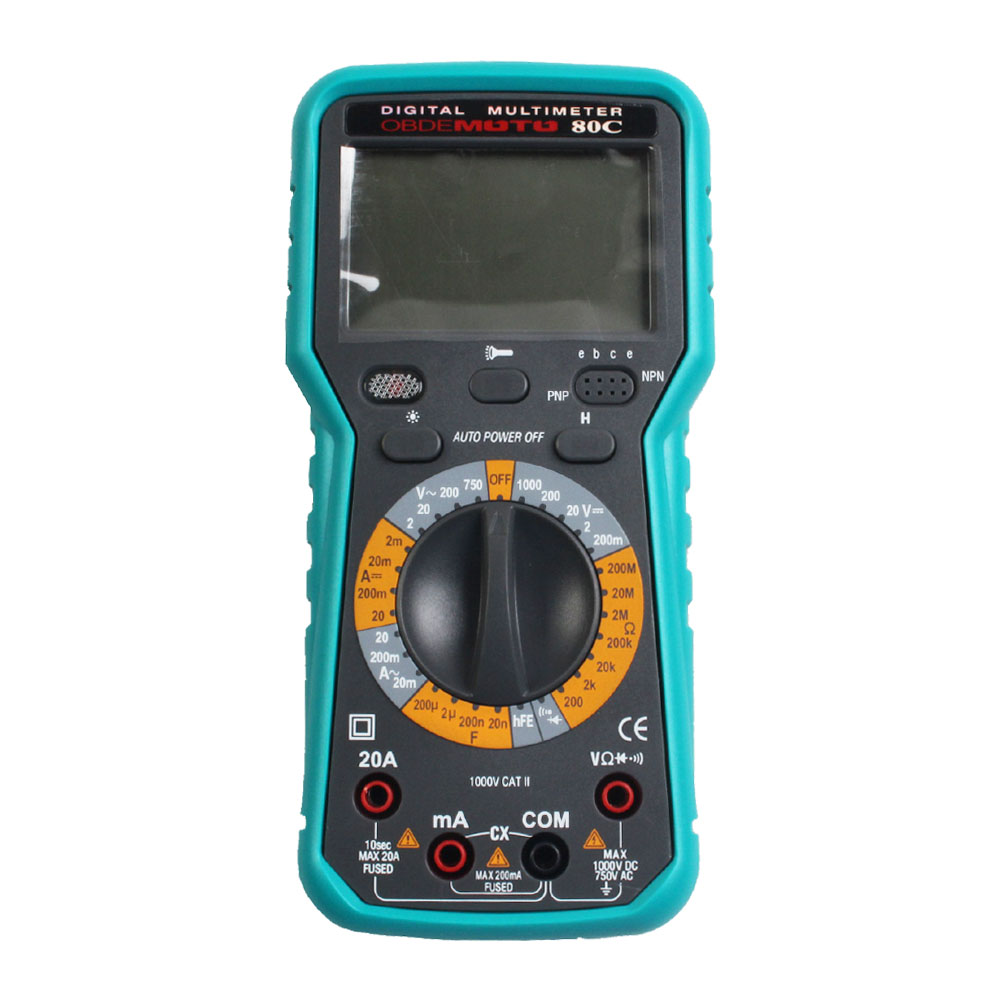

OBDEMOTO 80C  manual range digital multimeter is well designed with generous appearance, clearly large-screen LCD display, complete functions and convenient operation. All measurements except the triode test are input from the four test input jacks in the lower part of the multimeter, which are all tested with the test pen to facilitate your operation and enhance the safety. The input of the "V" jack is connected to the PTC thermistor, and the core part of the multimeter-the function/range switch is particularly well protected, greatly improving the safety and service life of the product.

Technical features
display:

Large-screen LCD display: Viewable area 61 x 38mm.
Maximum display value: 1999 (three and a half).
Automatic polarity display, over-range indication, and battery replacement instructions.
measuring:
Low-power CMOS dual-integration A/D conversion integrated circuit. Automatic zero calibration
DC basic accuracy: ±0.5%(three and a half).
Full-range overload protection.
Power supply:
Power: one 9V battery (NEDA1604, 6F22 or equivalent type).
Auto Power Off: will turn off the power automatically about 20 minutes if not use.

Size: 180×88×53mm.
Weight: about 359g (including battery, holster).

Environmental conditions:
Operation temperature: 0℃~40 ℃

Relative humidity: < 85%

Storage temperature: -10 ℃ ~50 ℃
Rrelative humidity: < 85%

Accuracy guaranteed temperature: 23 ℃ ±5 ℃

Relative humidity : < 75%< 75%
