New Energy Automobile Insulation Resistance Tester MST-DT60A
Technical specifications
Test condition: test temperature/humidity 23±5℃/45～75％RH;
Output voltage：90%~110%（Output load ≥1000MΩ）；
Short circuit current：≥1.5mA；
Low battery voltage indication;
Insulation resistance:≥500MΩ(1000V);
Voltage withstand:AC 2KV 50Hz 1minute;
Operation temperature and humidity:0℃~40℃ /Relative humidity 85% or less;
This manual is just applied to this instrument, our company is entitled to modify it.

Parameters:
Output Voltage:　±（10%）50V/100V200V/300V/400V/500V/600V/700V/800V/900V/1000V

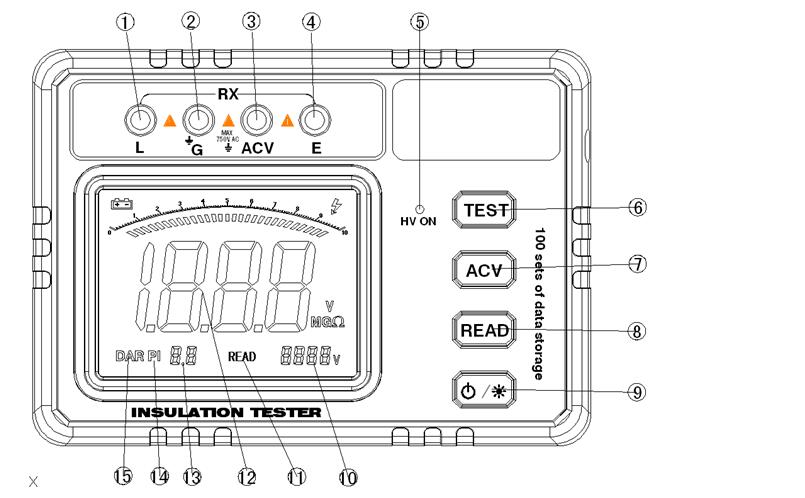

Appearance
1—Insulation resistance measurement high voltage output   L
2— Shield terminal G, the end terminal of ACV measurement
3 —the positive end of AC voltage measurement 4—Earth terminal E
5 —Insulation resistance measurement high voltage output indicator
6 —Insulation resistance measurement high pressure selection button / high pressure start button (long press for 2 seconds to start high pressure)
7 —function button of AC voltage measurement
8 —Data readout selection button
9 —Power switch (long press switch) / backlight button
10 —Display Output Voltage
11 —Data readout function indication
12 —Measured value display (insulation resistance / AC voltage)
13— Measuring the time display of the insulation resistance, the polarization index DAR, and the value of the absorption ratio PI
14— Absorption ratio PI
15— Polarization index DAR
