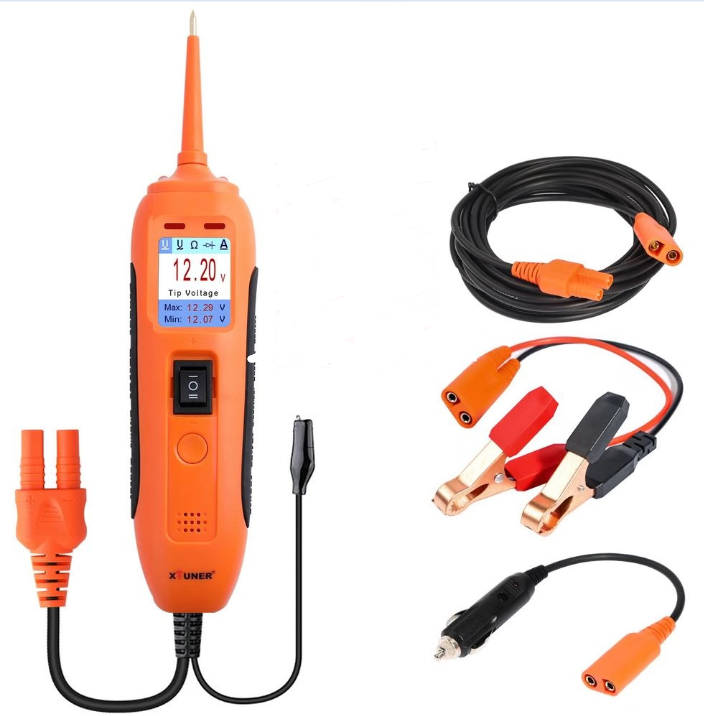

- DESCRIPTION
Specifications
| Display |
TFT color display (160 x 128 PPI) |
| Dimensions |
195 mm (7.68”) *50.5 mm (1.99”)*33mm |
| External Power |
12.0 - 30.0V power provided via vehicle battery. Recommended 12v power supply |
| Min Operating Voltage |
8 VDC |
| Max Operating Voltage |
12 VDC |
| Max Tip Voltage |
40 Volts |
| Probe Tip Resistance to Ground | 1000 K Ohms |
| Computer Safe |
0.1mA floating tip |
| Voltage Measurement |
0 to 40 VDC / VAC |
| Voltage Resolution |
0V -to 40V – 0.01V (10mV) |
| Glitch Capture |
> 50 µS Min Pulse Width |
| Power Feed Test |
< 3 mA |
| Resistance Measurement | 0 Ohms to 1M Ohms |
| Frequency Measurement | 40 Hz to 20KHz |
| Circuit Breaker |
8 Amp Thermal – Auto Reset |
| Breaker Trip Response |
8 Amps = No Trip 8 Amps = 1 sec. Short Circuit = 0.3 sec. |
| Operating Temperature |
-20°C (-4°F) to 50°C (122°F) |
| Storage Temperature |
-40°C (-40°F) to 65°C (149°F) |
Product Included
- User manual.
- Cigarette lighter adapter.
- Battery hookup clips.
- Probe tip.
- Extension cable.
- Rugged blow molded case.
