Function

1、low power consumption  CMOS Double integral A/D conversion integrated circuit，automatic zeroing、automatic polarity display、Data retention、low battery and over range indicator.

2、DC basic accuracy: ±0.5%  (6000 display)

3、Capacitance measurement：10pF~100mF

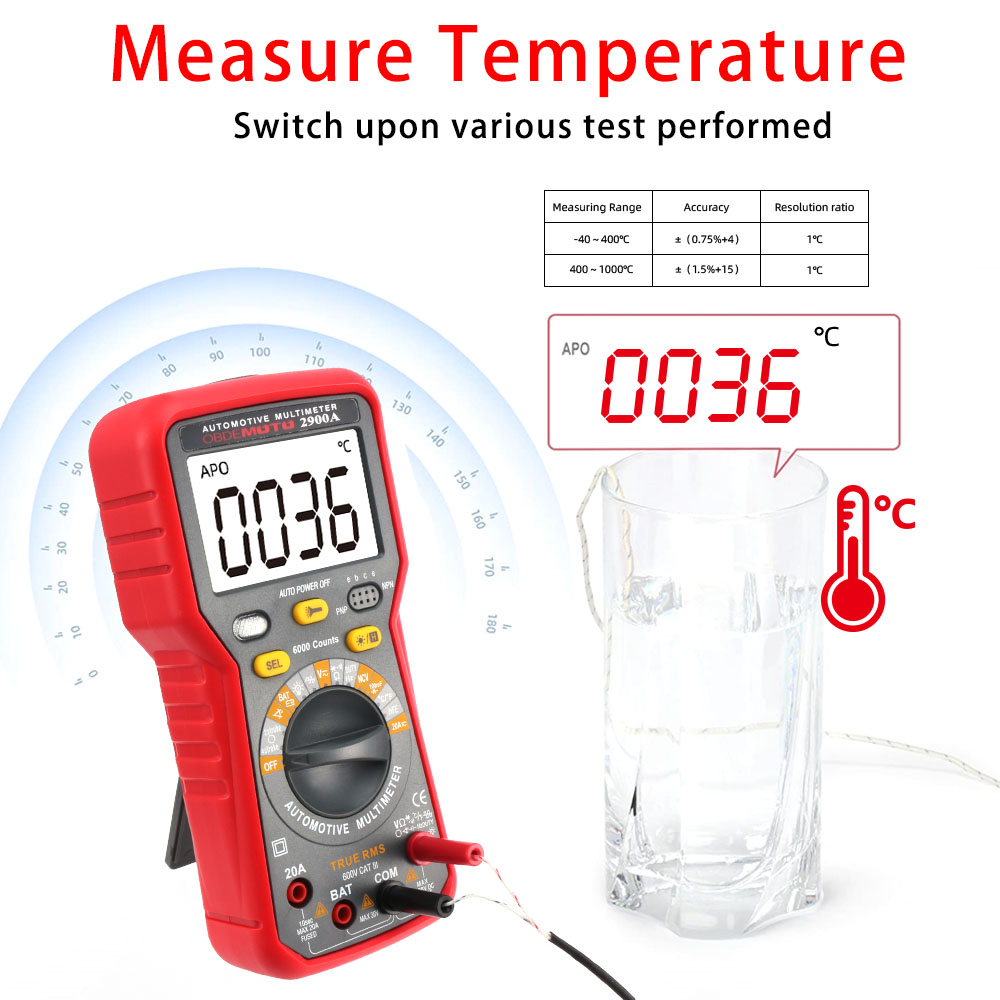

4、Temperature measurement：-40℃ ~1000℃

5、Full overload protection function.

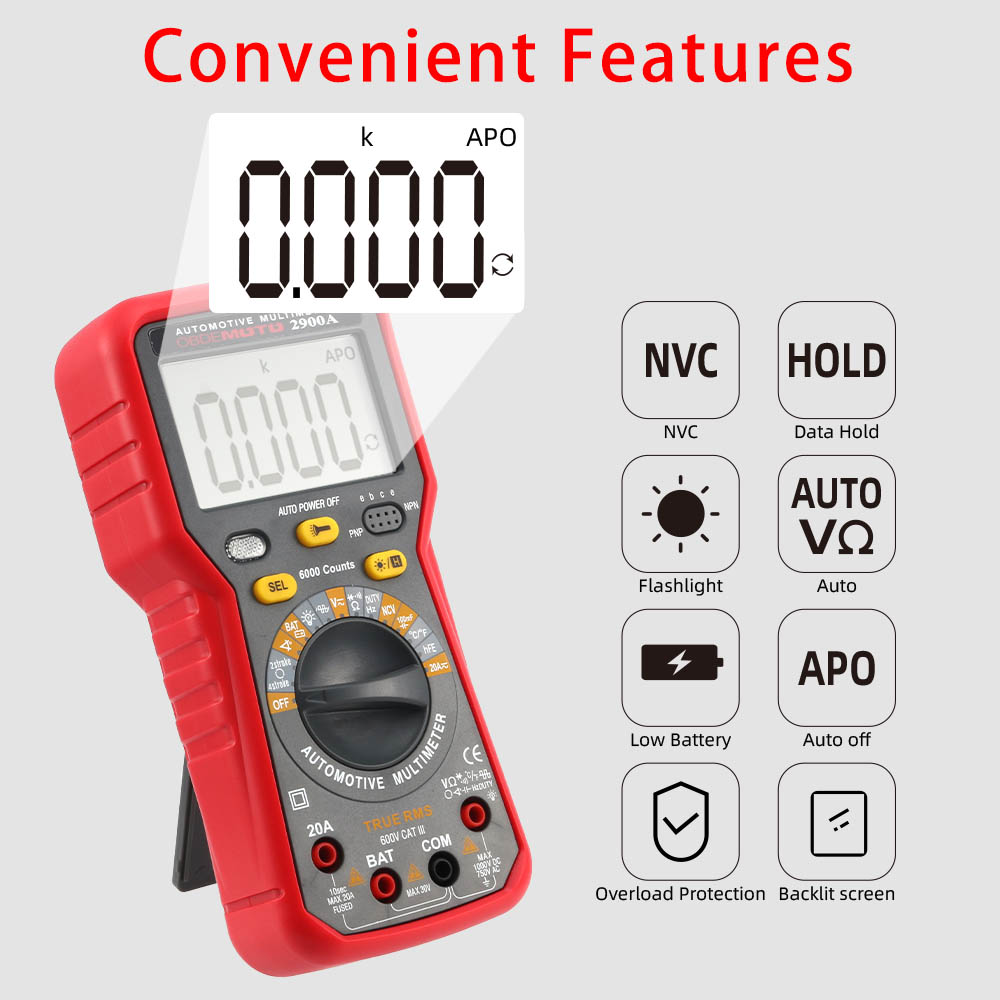

6、Backlight function: applicable to the dark environment.

7、Auto Power Off: Turn off the power supply automatically about 15 minutes after starting, so as not to forget to switch off the power when the meter is used.

8、Maximum display：5999（6000 display）。

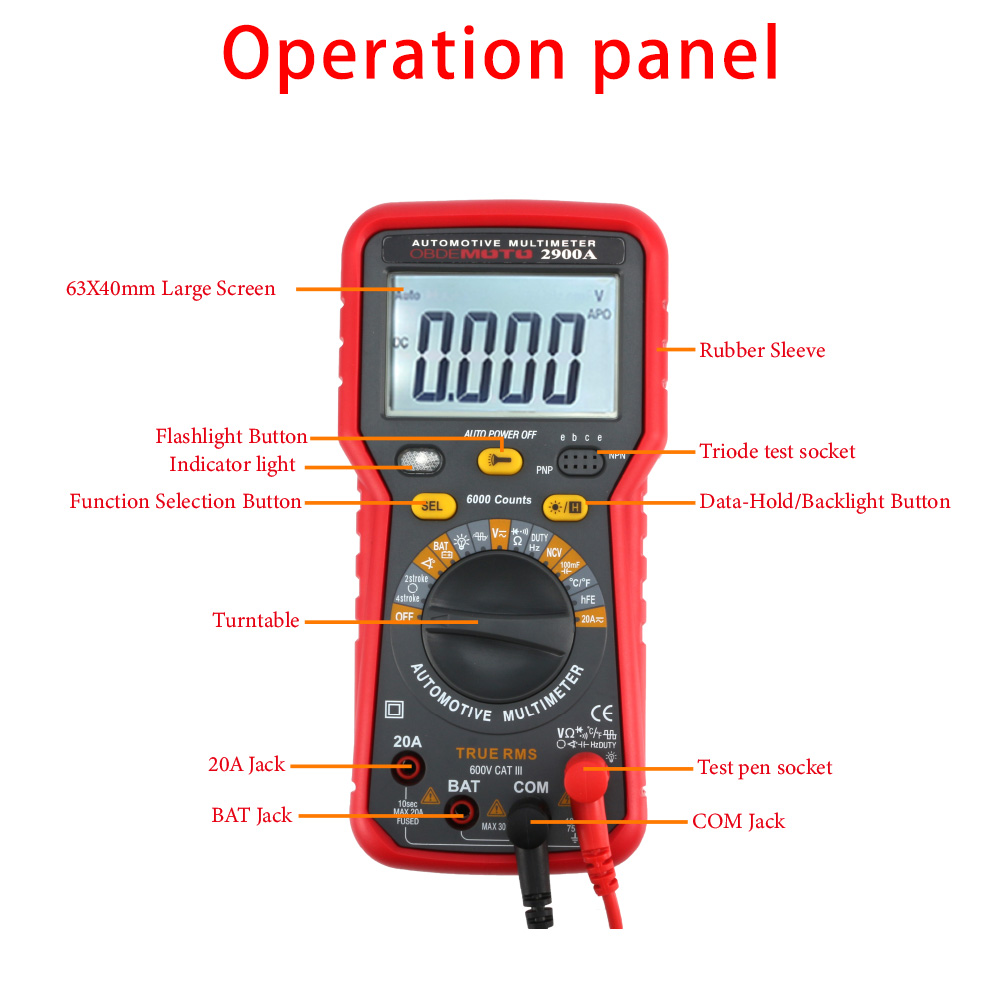

9、LCD：63X40mm large screen, high contrast, full symbol display，words height 25mm，clear and artistic.

10、Power Supply：one 9V battery （NEDA1604、6F22 type or equivalent type）。

11、Low battery voltage indication：At LCD left part shows“”symbol.

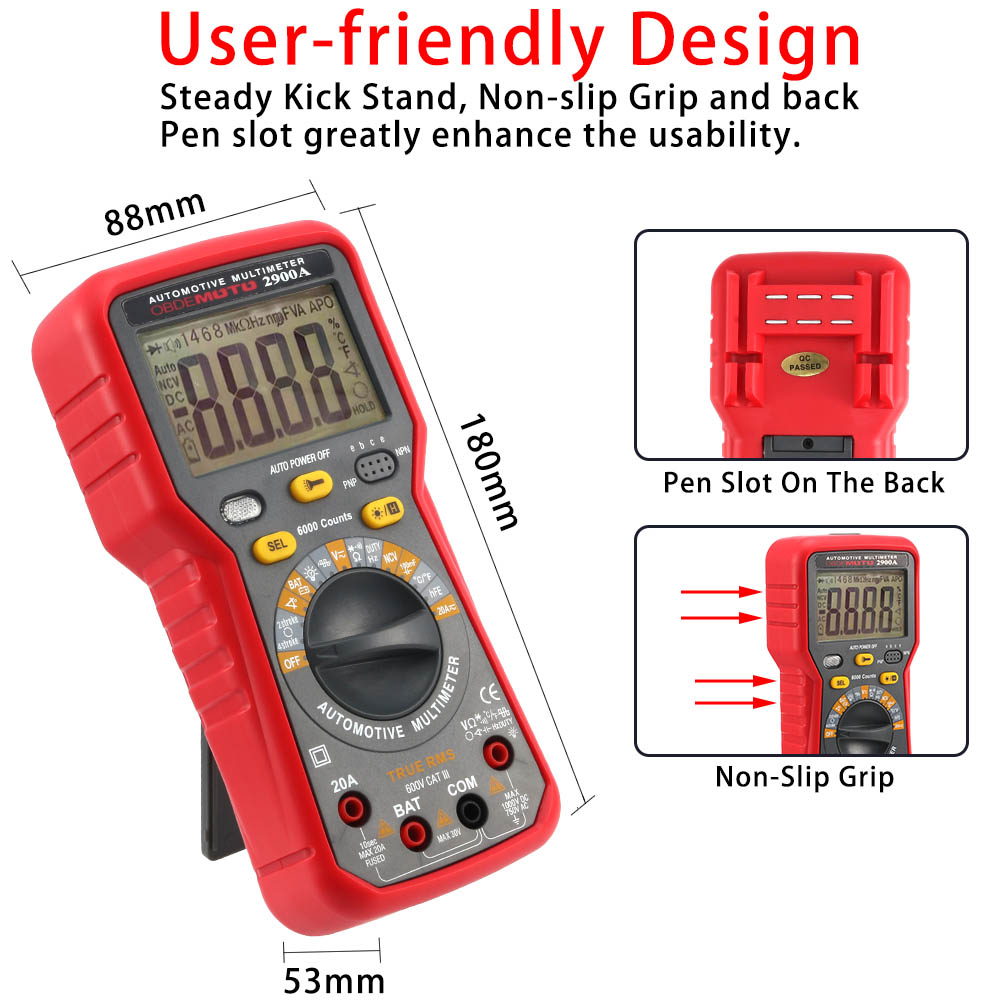

12、Size：180x88x53mm。

13、Weight: about 359g (including battery, sheath).

14、environment condition：

working temperature：0℃~40 ℃    relative humidity< 85%

Storage temperature：-10 ℃ ~50 ℃     relative humidity< 85%

Guaranteed accuracy temperature：23 ℃ ±5 ℃  relative humidity< 75%

Technical indicators

accuracy：±（% Reading ±word count）The guarantee period is one year.

ambient temperature：23℃±5℃

relative humidity：< 75%
